- Features

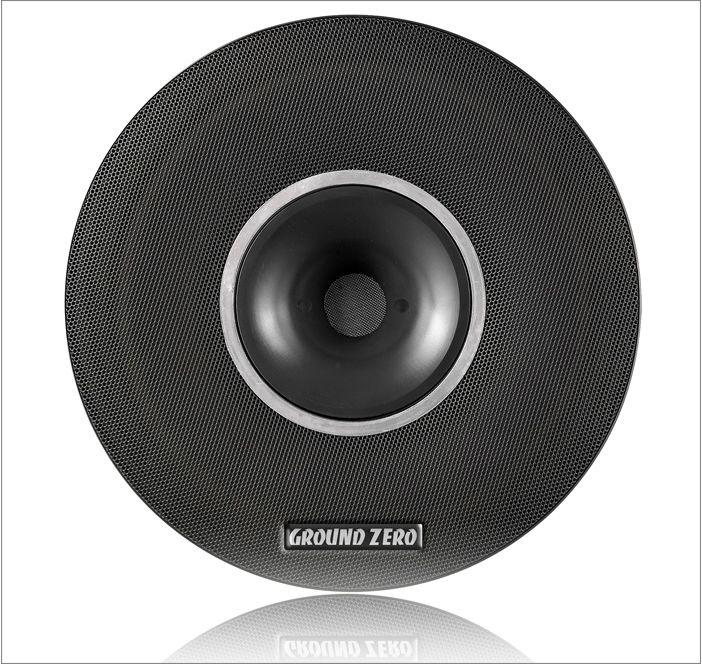

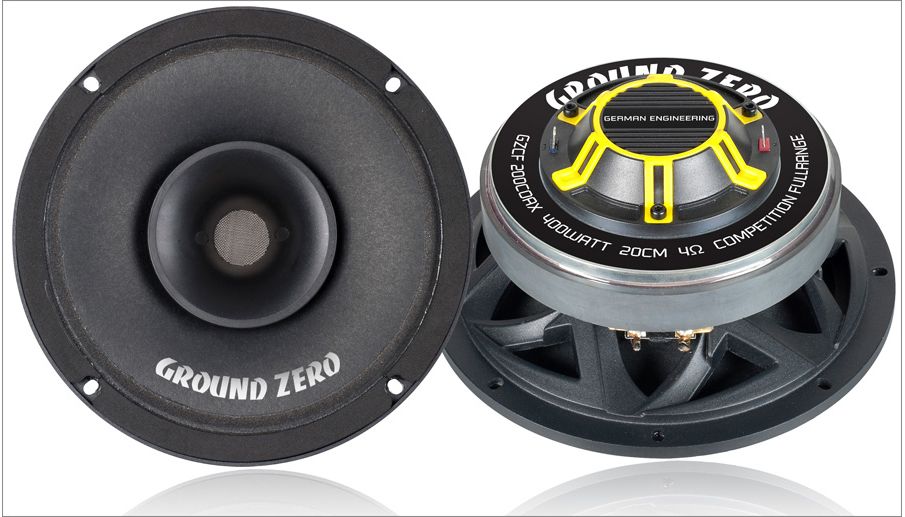

- - High power 2 way coaxial speaker
- - Fiber reinforced paper cone
- - Lightweight foam surround
- - Aluminium cast basket
- - Titanium dome
- - Round ABS plastic horn
- - Copper-clad aluminium round wire voice coils
- - Included 6 dB crossover
- Diameter of midwoofer or midrange210 mm / 8.27"
- Mounting diameter of midwoofer or midrange184 mm / 7.24"
- Mounting depth of midwoofer or midrange89 mm / 3.5"
- Voice coil of midwoofer or midrange50 mm / 2" CCAW
- Cone of midwoofer or midrangeFaser verstärktes Papier / Fiber reinforced paper
- Dustcap / Phaseplug of midwoofer or midrange-
- Basket of midwoofer or midrangeAluminium Guß / Cast
- Magnet of midwoofer or midrange158 mm / 6.22" 55oz Ferrit
- Voice coil of tweeter44,5 mm / 1.75" CCAW
- Cone of tweeterTitanium
- Housing of tweeterPlastik / Plastic
- Magnet of tweeterFerrit
- Power handling WRMS150 (Mid) / 50 (Tw)
- Power handling W peak250 (Mid) / 150 (Tw)
- Impedance4 Ohm
- SPL98 dB (Mid) / 100 dB (Tw)
