- Utviklet og produsert i Tyskland
- Rangert som verdens beste forsterker i magasinet auto hifi 2/09
- Effektmålinger @13,8V:
- 4x292W rms @4ohm (136A)
- 4x270W rms @2ohm (143A)
- 4x284W rms @1ohm (186A)
- Signal/støyforhold: > 110dB
- Frekvensområde: 10 Hz - 80 Khz
- Dempingsfaktor: > 800
- THD: < 0,001%
- TIM: < 0,006%
- Inngangsfølsomhet 600mV - 8,0V
- Inngangsimpedans 10 kOhm
- Ekstern sikring 130A
- Fysiske mål:330mm x 74mm x 330mm
- Product Specification
- available in the design versions:
- black, silver, stainless steel, chrome, titanium
- TECHNICAL DATA
- Continous power rating at 4 Ohms per channel: 4 x 280 Watts RMS
- Continous power rating at 2 Ohms per channel: 4 x 280 Watts RMS
- Continous power rating at 1 Ohm per channel: 4 x 280 Watts RMS
- Continous power rating, bridged at 4 Ohms: 2 x 560 Watts RMS
- Continous power rating, bridged at 2 Ohms: 2 x 560 Watts RMS
- THE BRAX PHILOSOPHY

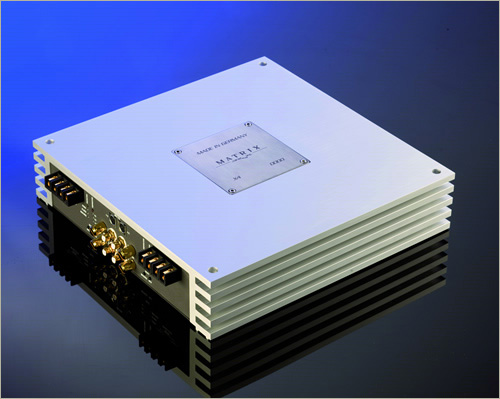

- Based on our basic principles "handmade" and "made in Germany" we have designed the amplifier BRAX Matrix X4 according to the latest technical knowledge. The result is both a top-class amplifier and a true high-end statement: A long lasting period of research and development, innovative technologies and an extremely fastidious manufacturing combined with the love for music as the driving force for our work make the BRAX Matrix X4 doubtlessly to the most powerful and best sounding 4-channel amplifier of the world. Concerning the straight design of the X4-amplifier and the sophisticated layout of the circuit board, we have deliberately set crossovers and filter functions aside. Short signal paths combined with selected components "made in Germany" ensure pristine listening pleasure and underline the puristical high-end philosophy of the BRAX Matrix X4. In order to completely eliminate power differences and manufacturing tolerances, we only use hand-selected transistors for the production of each X4-amplifier. Concerning power-, voltage- and resistance data we select them in more than 300 categories. Thus, all transistors harmonize perfectly in terms of technical specifications. In doing so, our BRAX amplifiers obtain a worldwide reference status. Striving for ultimate perfection, Audiotec Fischer is the only manufacturer of audiophile products on the globe that conducts this extensive and time-consuming hand-selection. Of course, all the instruments that are necessary for this procedure are in-house developments. Two separate power supplies for the channels A/B and C/D account for an endlessly stable power output. The amplifier's output is even stable when you connect loudspeakers and a woofer with different impedances to the BRAX Matrix X4. In order to control voltage fluctuations, an external power stabilizer can directly be connected to the power supply. Moreover, the solid and gold-plated terminals for cables up to 50mm² make another contribution to an ideal power supply of the BRAX Matrix X4. At the end of the day, the BRAX Matrix X4 can be described as an amplifier with a sound rendition that is highly dynamic, powerful in an awsome way and swift as an arrow. The underlying philosophy is topped-off by a packaging in a precious wooden box. Furthermore, each single amplifier is manufactured individually and its respective serial number is recorded in our data-base. The amplifier BRAX Matrix X4 is only produced on demand and of course we can respond to our customer's requirements. In this way, each amplifier is a valuable individual item that rightly deserves the title "high-end made in Germany".
