- MATCH er nye spesialtilpassede produkter fra tyske Audiotec Fischer (Brax, Helix)
- 1 kanals klasse D effektforsterker med delefilter
- RMS Effekt @13,8V 4Ohm: 1 x 300W / 600W max
- RMS Effekt @13,8V 2Ohm: 1 x 500W / 1000W max
- Stabil 2 Ohm mono
- Subsonisk/Høypassfilter 10-50Hz trinnløst justerbart
- Lavpass filter 30-250Hz trinnløst justerbart
- Bassdrive @ 45Hz, 0-12dB boost
- Faseskift 0 - 180 grader
- Frekvensrespons: 10-250Hz
- THD < 0,3%
- Inngangsnivå RCA: 0,4 - 6Volt (30 kOhm)
- Inngangsnivå høynivå: 1 - 15 Volt (30 Ohm
- Dempingsfaktor > 100
- Powertilkoblinger: 25mm2 kabel
- Høyttalertilkoblinger: 10mm2 kabel
- RCA innganger: 2 rca og 2 høynivå
- 2 x 25A sikringer
- Mål (H x B x L): 53mm x 184mm x 235mm
- Fjernkontroll for dashbordmontering inkludert

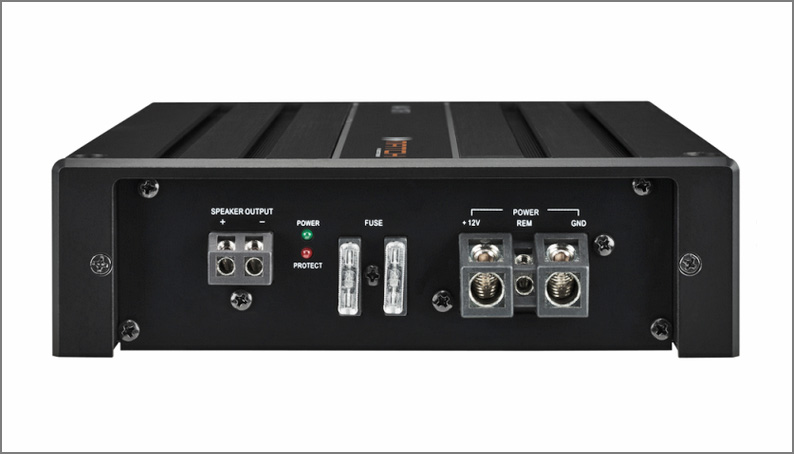

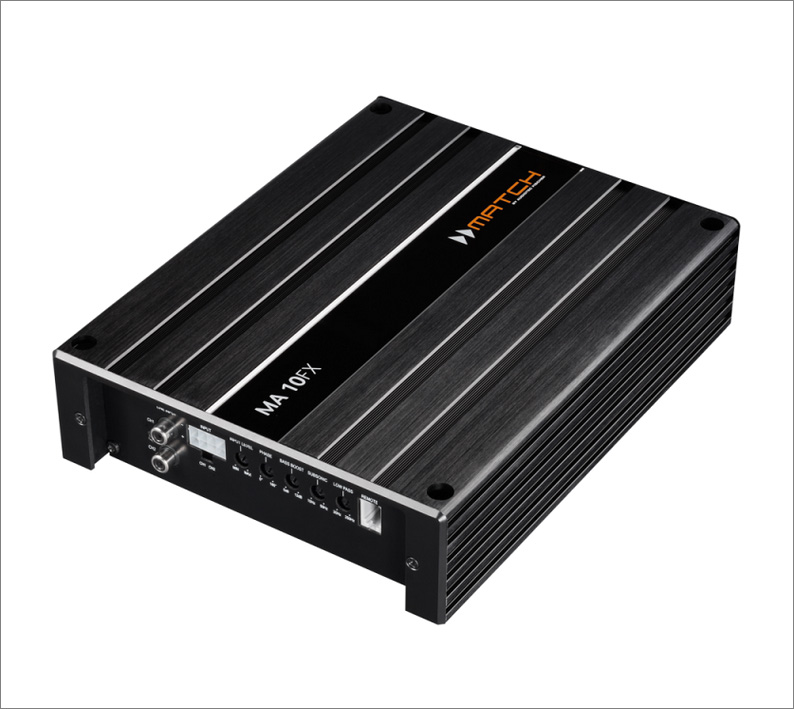

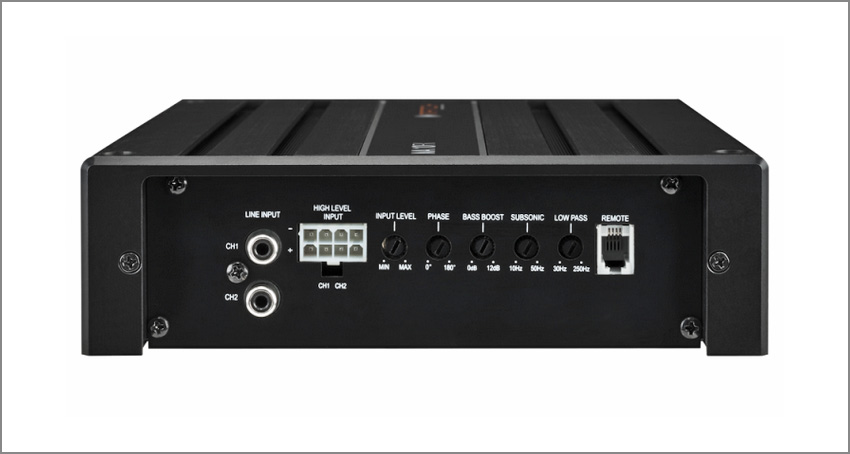

- The compact powerhouse for subwoofer applications – the MA 10FX is a very capable mono block designed in latest Class D technology that comes up with 500 watts RMS into 2 ohms just like that. It acts either like a perfect complement for our PP 52DSP and PP 82DSP amplifiers, if those shall be combined with arbitrary subwoofers. Or the MA 10FX flexes its muscles as a discrete amplifier for the upgrade of existing sound systems. Highly integrated SMD technology and sophisticated digital amplifier design lead to a very compact construction with outstanding efficiency.
