MATCH er nye spesialtilpassede produkter fra tyske Audiotec Fischer (Brax, Helix)
- Simple Plug & Play connection to original sound systems using vehicle-specific adapter cables

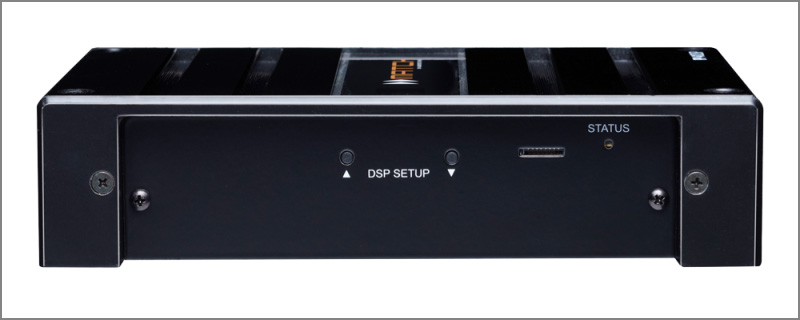

- Up to 16 different DSP setups preprogrammed and available at the push of a button

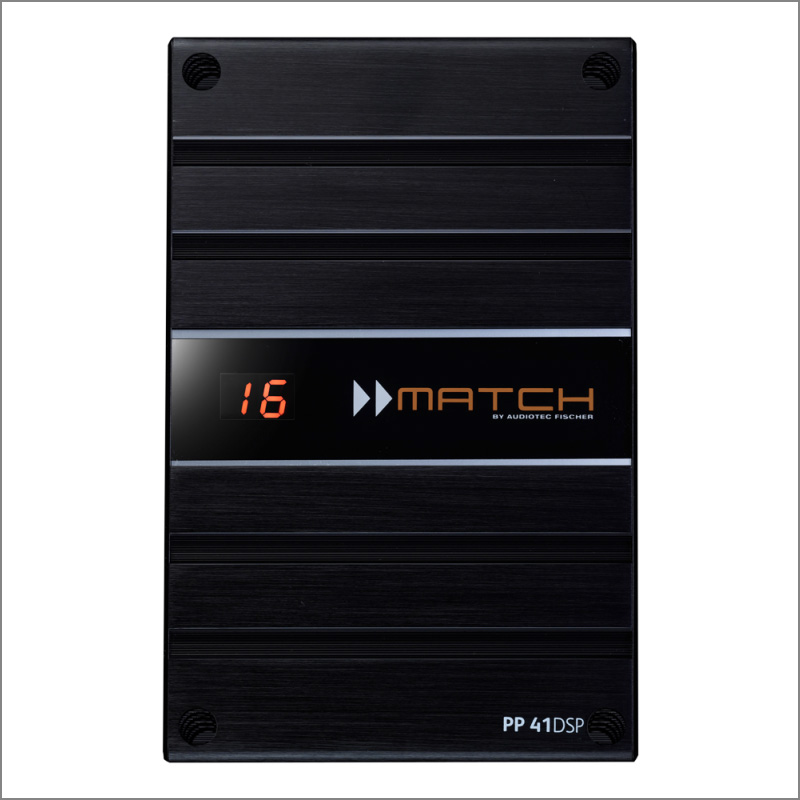

- Display the selected setup via the 7-segment display

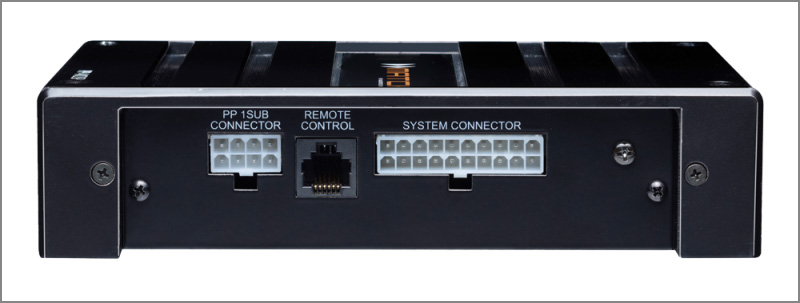

- Low level sub out for a separate PP 1Sub subwoofer amplifier
- 56-bit DSP technology and 24-bit AD/DA converter
- Start/stop capable down to 6 volts supply voltage
- MCM power supply technology with „ECO mode"
- Plug jack for optional cable remote control
- State-of-the-art SMD technology for a more compact design and maximum reliability
- Four-layer printed circuit boards for best possible power and signal transmission
- Output Power RMS / Max
- at 4 Ohms 4 x 35 Watts / 70 Watts
- at 2 Ohms 4 x 50 Watts / 100 Watts
- Frequency response 20 Hz - 22.000 Hz
- Number of inputs 4 x Highlevel
- DSP resolution 56 Bit
- DSP processing power 50 Mhz
- Total harmonic distortion (THD) < 0,03 %
- Signal-to-noise ratio > 100 dB
- Damping factor > 100
- Input impedance 30 Ohms
- Dimensions (H x W x D)185 x 44 x 124 mm
Passer følgende Toyota:
- Setup Car model Type Subwoofer optimization
- Yaris XP13 - PP7E/S
- Yaris XP13 - PP10D
- Verso Typ199 - PP7E/S
- Auris E150 - PP7E/S
- Auris E180 - PP7E/S
- Verso xxR20 - PP7E/S
- Verso xxR20 - PP10D
- Prius ZVW30 - PP7E/S
- Prius+ ZVW30 - PP7E
- Avensis Sedan T27 - PP7E/S
- Avensis Sedan T27 - PP10D
- Avensis stasjonsvogn T27 - PP7E/S
- Avensis stasjonsvogn T27 - PP10D
- Hilux KUN - PP8E
- RAV4 4.gen - PP7E/S
- RAV4 4.gen - PP10D
